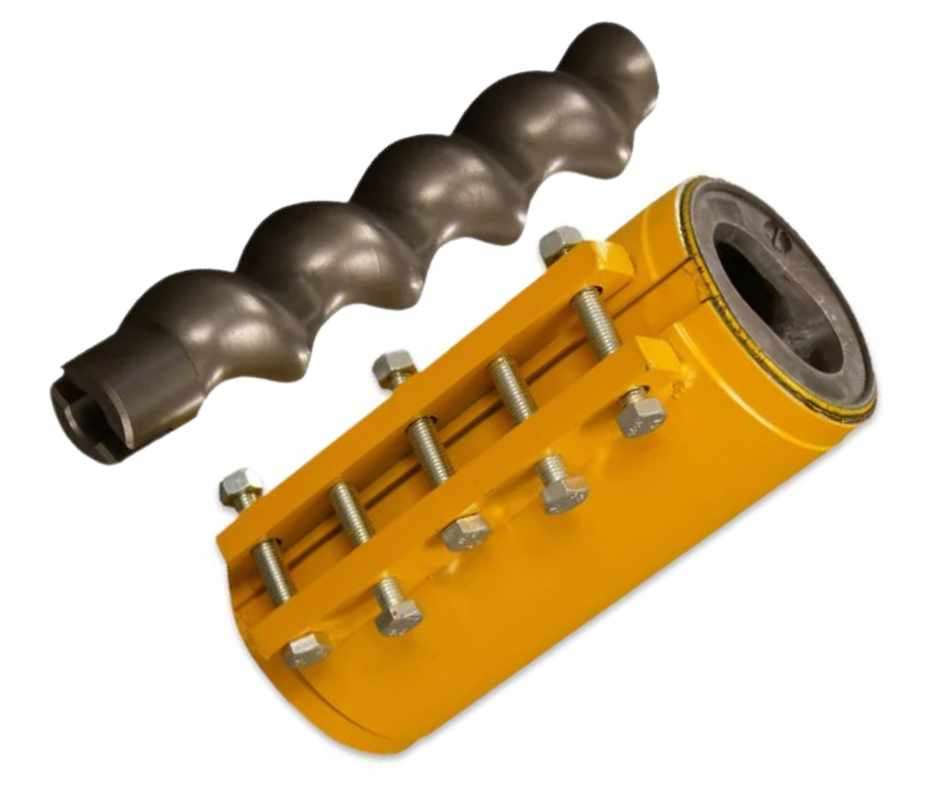

Duo-Mix U45/7 Rotor and Stator Yellow

The Duo-Mix U45/7 Rotor and Stator Yellow are ideal for pumping screed. Many other machines can support this powerful pump if the pressure flange has the right dimensions.

Duo-Mix U45/7 Rotor and Stator Technical information

• Stator Diameter: 127 mm
• Stator Length: 270 mm
• Rubber Quality: 70 Shore
• Flow Rate (@ 400 I 200 RPM): 66 l/min I 33 l/min
• Max. Grain: 8 mm
• Rotor Material: High alloyed tool steel

The Rotor is supplied with a slit drive head. The Stator comes with an integrated clamp to allow for pressure adjustment. Please note: It is very important to note that the diameter is wider than regular D stators like the D6-3. So, you have to ensure your machine has the proper pressure flange. At CES, we stock a wide range of rotors and stators to suit rendering, flow screed and concrete pumps. Take a look at our full range here. It is vital to fit the correct rotor and stator to your machine so if you are unsure please contact us on 01494 715472 and our workshop time will be able to support you with the best advice.
