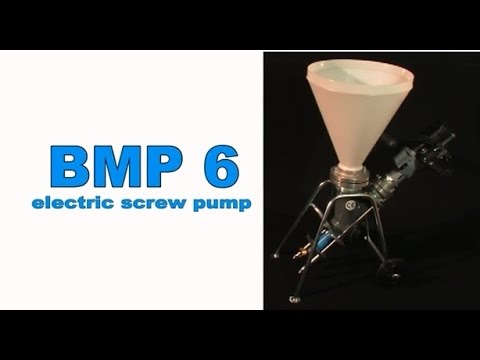

BMP 6 Grout Pump

BMP 6 Grout Pump

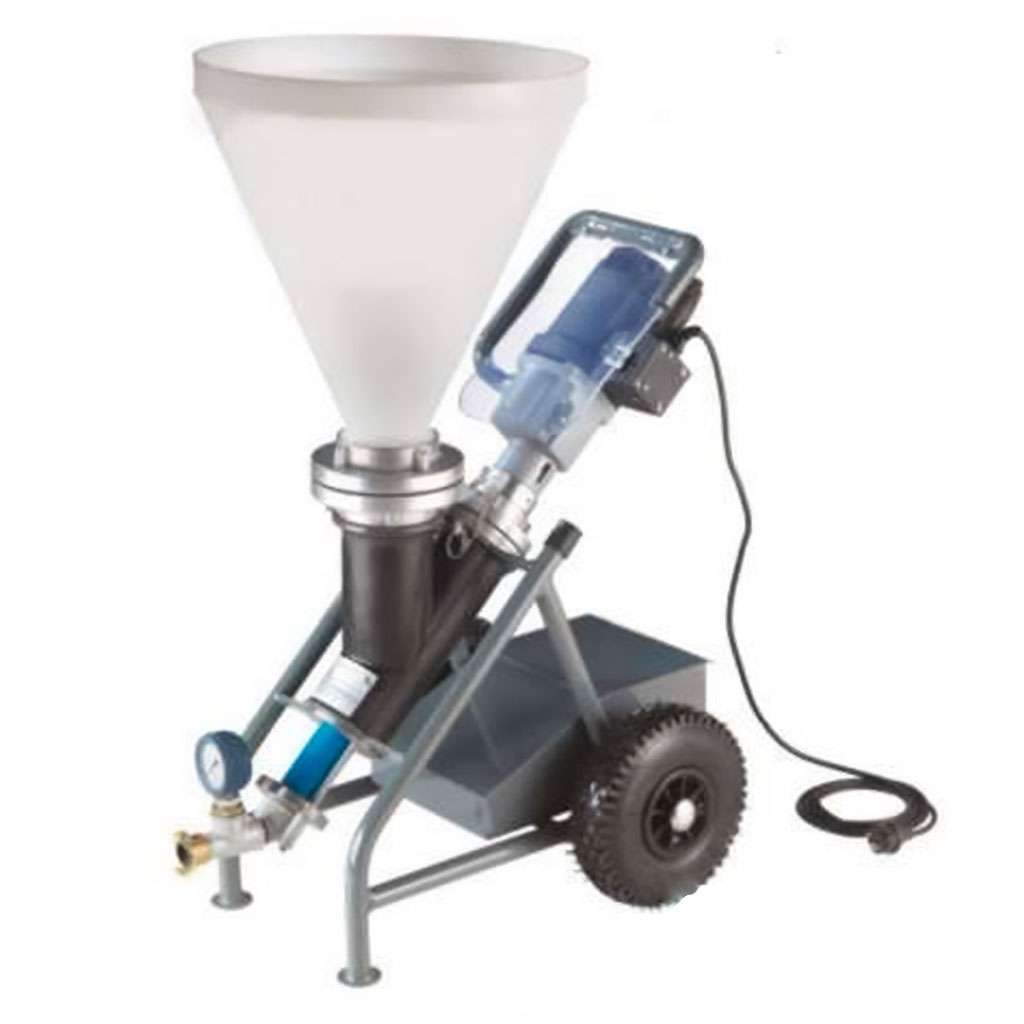

The BMP 6 is a worm pump that is very similar to the Giema TP2 or Strata CP006 machines. It has been designed as a universal lightweight machine for waterproofing, injection filling and restoration works. It is suitable to work with all pre-mixed and pump-able materials (solvent-free) like cementitious waterproofing grouts, bituminous thick coatings, renders, plasters, etc., with a maximum grain size of around 2 – 2,5 mm (depending on material). The BMP 6 Grout Pump comes with a 2-gear motor (forward and reverse) and adjustable dial for easy output and working speed adjustment. With the integrated reverse drive, the release of pressure in delivery hoses is very easy. Due to a wide range of different accessories, the BMP 6 can be used for many different applications, such as… spraying, injecting and pumping. A remote control cable can also operate the pump.

Advantages

• Wide range of accessories
• Easy to use
• Demountable into 3 parts without any tools
• Easy to transport
• Output capacity adjustable 0.5 – 14 ltr / min
• Voltage 230 V (110 V) – ideal for restoration
• Saves labour costs
• Reverse drive for safety and easy pressure release
• Minimal space required at the building site

Technical Data

• Weight: 25 kg (demountable into 3 parts)
• Motor: 1.8 KW, (2 gears Forward/Reverse operation)
• Capacity: 0.5 – 14 ltr / min (dep. on stator/rotor)
• Work pressure: 15 – 25 bar (dep. on stator/rotor)
• Voltage 110/240 V – 50 Hz
• Pumping distance: 20 – 30 mtr (depending on material)
• Power Supply: 16 Amp
• Rotation speed: 90 to 280 rpm
