InoBEAM M8 Peristaltic Pump

The InoBEAM M8 Peristaltic pump is designed and made in Germany and built to last. Its peristaltic operation makes the InoBEAM M8 ideal for pumping grouts, and when adding a compressor, it can also spray External Wall Insulation Renders and Waterproofing Tanking Slurry. Disconnect the compressor; the M8 is a fantastic machine for pumping grouts. This material-friendly method of delivery allows for the application of specialist ultra-fine plasters, including StoSilent acoustic spray plasters. The delivery method is less demanding on the pump itself. It minimises wear and tear costs by up to 40% when compared to conventional pump technologies. The M8 is ideal for low-viscosity materials like paint as well as high-viscosity materials, such as renders. This machine is lightweight, compact and portable, therefore easy to transport and move on site. Firstly, the hopper can be removed, allowing the machine to fit into the back of most small cars. Secondly, when on site, the machine can be picked up by one person using the handle fitted to the machine.

Technical Data

Operating pressure	bar	up to 15
Operating voltage		110v / 50Hz /16amp
Motor performance	kW	0,55
Empty weight	kg	28
Delivery rate (depending on the material)	l/min	max. 0 - 8
Conveying distance (depending on the material)	m	max. 30
Pressure height (depending on the material)	m	max. 20
Grain size	mm	max. 2
Hopper capacity	l	30
Dimensions (L x W x H)	mm	600 x 230 x 750
Weight	kg	approx. 28

M8 Features and benefits

• 110V - ideal for site use
• Compact, lightweight and portable, can be used easily by one person
• Lightweight hose
• Variable speed and remote control on/off switch
• Continuously variable pressure regulator
• Can be combined with bulk containers (vats)
• Easy to clean and maintain
• Few wearing parts
• For use with pasty and liquid products
• Pressure and quantity can be adjusted manually
• Pumps pasty material up to 30m and paint up to 100m horizontally

Spec Sheet for Inomat M8

Materials the InoBEAM M8 can Pump and Spray:

• Acoustic Renders and Plasters
• Grouts
• Paints
• EWI Render
• Base Coat
• Thin Coat Renders
• Waterproofing Tanking Slurry

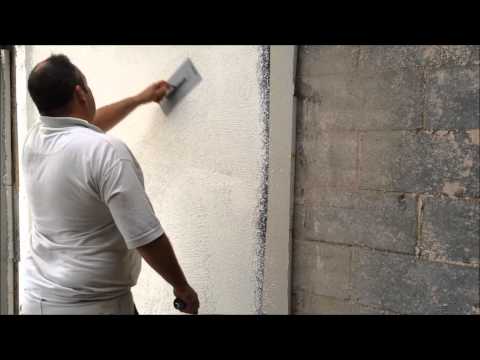

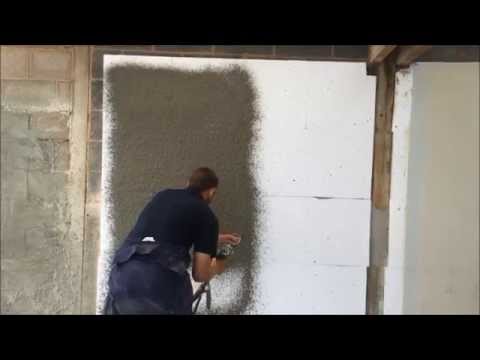

The InoBEAM M8 is an ideal machine to Spray EWI Render Systems. It sprays both base coat and top coat from a range of suppliers, including Sto, Krend, Weber and Parex. The M8 is spraying the Sto EWI Render System in the video. Please view the video and call us if you have any further questions... The M8 is also available to hire as part of a Thin Coat Render Spray bundle; take a look here.
