InoBEAM M8 Waterproofing Spray Kit

InoBEAM M8 Waterproofing Spray Kit

The InoBEAM M8 Waterproofing Spray Kit from INOTEC is the gold standard in machine application of waterproofing products for building elements. The unique pump technology conveys heat-sensitive waterproofing agents and grouts just as easily and efficiently as acoustic coats, filling compounds, top coats, paints, jointing and grouting mortars and many more. Weighing only 28kg, the pump can be easily handled and transported - especially with an optionally available trolley. Operating the machine is very simple, and the cleaning procedure requires only a few minutes. The wearing parts can be directly replaced on-site, wherever you are - convenient and easy!

InoBEAM M8 Waterproofing Spray Kit benefits at a glance

• Lightweight, small and handy
• For liquid and paste-like materials
• Unique pumping technology - perfect for sensitive materials
• Simple operation
• Very fast cleaning and maintenance
• Variable quantity control
• Suitable for dry running
• Removable material hopper
• Connection socket for remote control cable

InoBEAM M8 Technical data

• Operating pressure: max. 15 bar
• Operating voltage: 110V
• Motor power: 0.55 kW
• Pumping speed: 0 - 8l/min.
• Hopper capacity: 30 Litres
• Dimensions: 600 x 230 x 750mm (LxWxH)
• Weight: approx. 28kg

Gentilin C330 Technical Data

• Air Displacement: 200 l per min | 12 m3 /hour | 7.06 cfm
• Tank capacity: 3 litres
• Number of Cylinders: 2
• Working Pressure: 10 bar / 145 psi
• Sound level: 79.6 dB
• Voltage: 110 Volt / 50 Hz
• Power: 110v = 1.7 Kw (32amp)
• Motor speed: 1400 rpm
• Weight: 32 kg
• Dimensions: 480 x 400 x 598 mm (LxWxH)

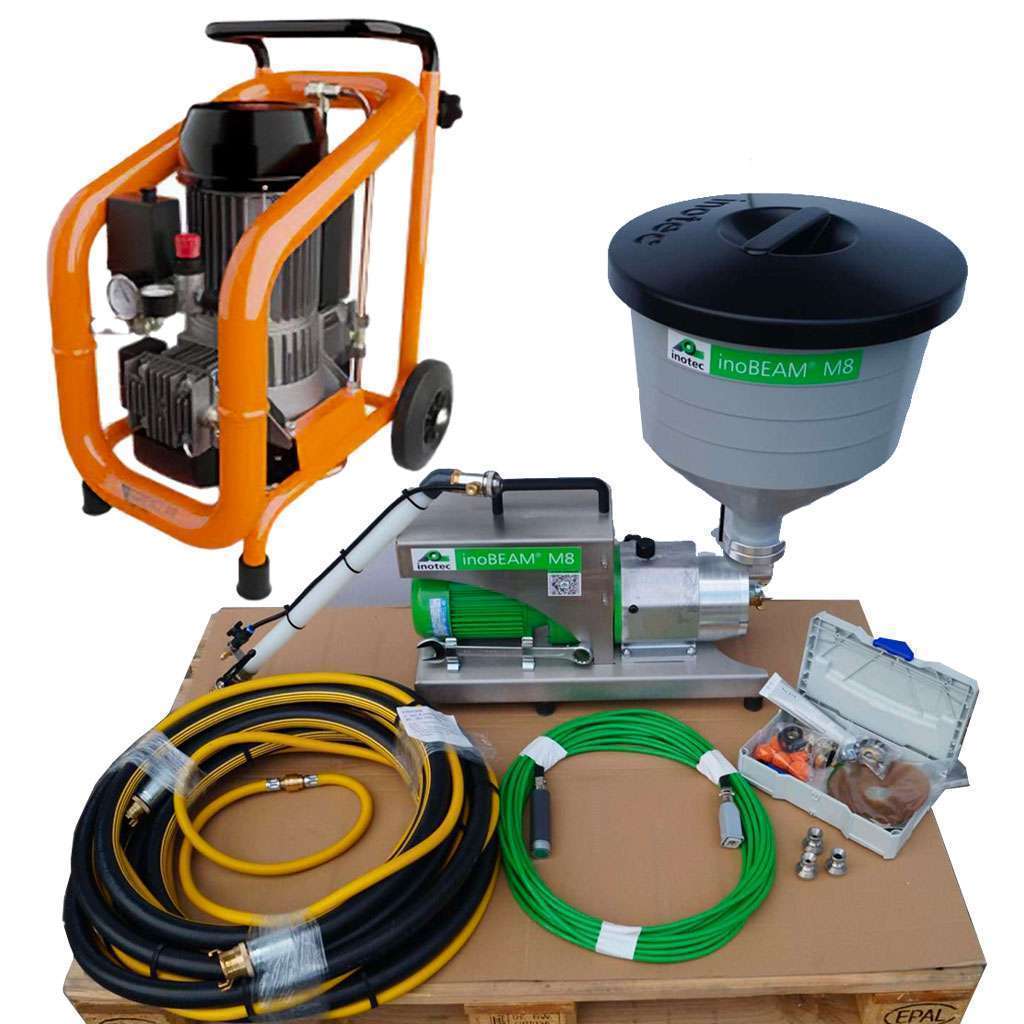

• Included kit:
• InoBEAM M8 110v
• Gentilin C330 Compressor 110v
• 10m Combination material-/airhose
• Angled sprayhead 650 mm
• nozzle sizes 5,6 and 8mm
• 16m Remote control cable
• Cover for material hopper
• M8 Service Kit

Ideal for spraying waterproofing systems from Remmers. Botament, Bostik, PCI, Koster and similar.

Remmers waterproofing systems for machine application

When developing Remmers waterproofing products, we focus on durability, versatility and complete safety. Thanks to decades of experience in the fields of application technology, research and development, we are able to guarantee this safety. We put our products through rigorous tests on a regular basis to ensure that their performance remains at consistently high levels. Of course, we are also committed to finding the most efficient way to use our systems. One such example of this is our partnership with the machine manufacturer INOTEC GmbH, which works with us to test out the most economical application method – spraying.

The result:

Machine technology from INOTEC can be used for Remmers PMBC products and mineral waterproofing grouts and MB 2K.

Some examples:

MB 2K

• Unbeatable rapid drying < 18 h
• Highly flexible, resilient and crack-bridging ≥ 3 mm
• Resistant to water pressure up to a dry layer thickness of 3 mm without fabric reinforcement
• High adhesive pull strength even on bituminous substrates
• Impervious to radon
• BBA approved

PBD 1K PMBC waterproofing for building elements in contact with the ground

• Extremely resistant to compression
• Highly crack-bridging
• Impervious to radon
• Resistant to water pressure

WP Sulfatex Rigid, mineral waterproofing grout for subsequent interior and exterior waterproofing of buildings

• High impermeability to pressing water (also resistant to water pressure at the rear)
• High sulphate resistance
• Good adhesion to the substrate
