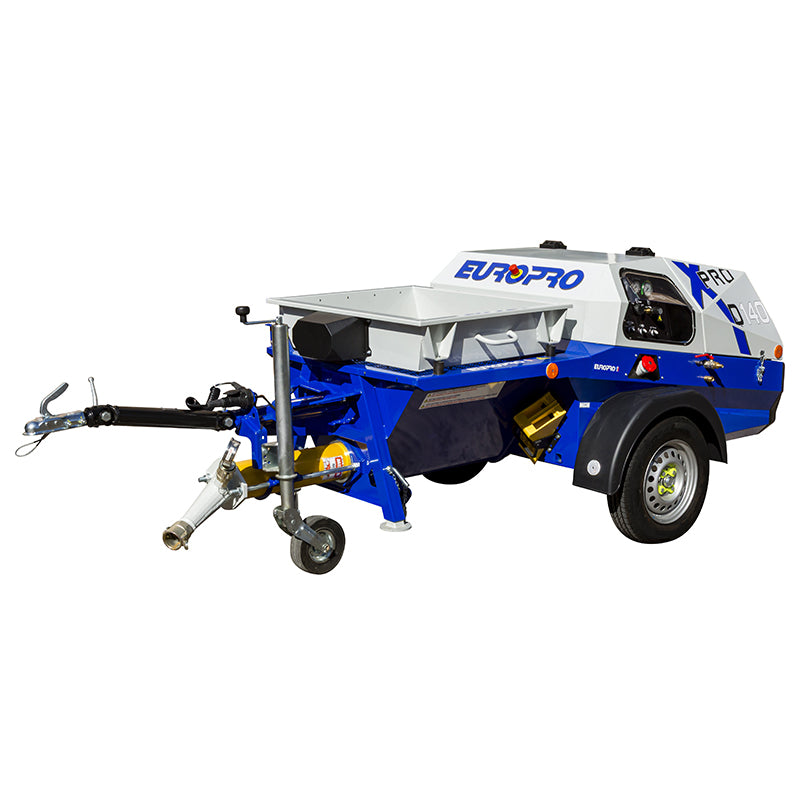

Euromair X-PRO D140 Liquid Flow Screed Pump

New Look For 2025!

The Euromair X-PRO D140 Liquid Flow Screed Pump is a worm pump for liquid floor screed application. To guarantee continuous flow rate, even with metallic or synthetic fibres in the liquid screed, a vibrator is fitted as standard. The Euromair X-PRO D140 Liquid Flow Screed Pump design has been optimized for maintenance with simple and fast access to all components. Fitted with a 3-cylinder Kohler diesel 19 kW engine. This powerful machine is ideal for calcium sulphate self-levelling floor screed (anhydrite) as well as cement self-levelling floor screed. Designed with good accessibility for easy servicing. Fitted with a 60R12 rotor and stator as standard. This will allow for pumping up to 120m vertically with maximum outputs of 14m3 per hour (approx. 200 litres per minute). A built-in high-pressure washer as standard. Supplied with 1-year parts* and labour warranty covered in the UK (*excluding wear part)

Euromair X-PRO D140 Liquid Flow Screed Pump Technical Data

• Motor: Kohler KSD 1403
• Motor power: 19 kW – stage V
• Oil: 5W40 synthetic
• Fuel: Diesel B7
• Diesel tank: 25 L
• Cooling: Liquid
• Speed of rotation: 2400 RPM
• Number of engine cylinders: 3
• Consumption: 5.5 L/h
• Hydraulic system: 28 L
• Hydraulic controls: electrical/manual
• Pump speed setting: Manual hydraulic control
• Motor accelerator throttle control: electrical/automatic
• Hopper tank capacity: 218 L
• Tank drain plug : Yes (sponge ball)
• Variable pumping speed: from 0 to 230 L/min (14 m3/h)
• Hydraulic pressure: from 0 to 140 bar
• Pump pressure : from 0 to 30 bar
• Maximum grain size: up to 8 mm
• Rotor and stator : 60R12
• Pump reverse operation: Yes
• HP washer max pressure: 140 bar
• HP washer flow-rate: 11 L/min
• Overall length with tow bar: 3.66 m
• Overall length without tow bar: 3.28 m
• Overall width: 1.24 m
• Height at the highest point: 1.28 m
• Weight when full with oil and diesel: 745 kg
• Max pumping height: 80 m
• Max pumping hose length: 120 m

Included Kit

• 50mm x 20m hose
• Two cleaning balls 50mm
• Grease gun with a grease cartridge
• Built-in pressure washer
• Complete high-pressure washer lance with 10m hose
• Wireless remote control (on/off)
• Accessories carry case
• Supplied with 1-year parts* and labour warranty covered in the UK (*excluding wear part)

Did you know you can try before you buy with our trial hire scheme? Hire the machine for 1 week (5 days), and if you decide to buy after this period, you'll be credited 1 week of hire (excluding carriage costs). Find out more here >
