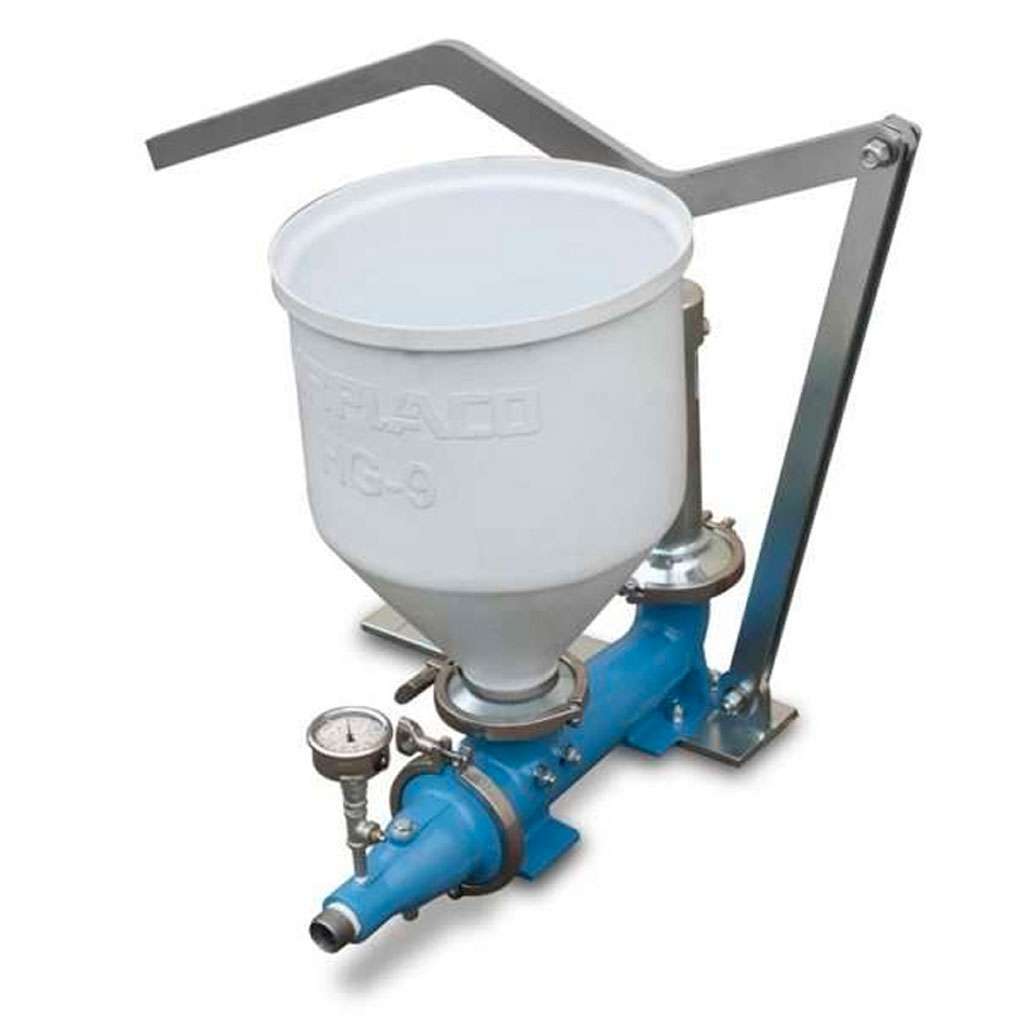

Airplaco HG-9 Hand Operated Grout Pump (HIRE)

The Airplaco Handy-Grout HG-9 is a hand-operated, portable grout pump ideal for use where access is limited or where no power is available. The HG-9 is a lightweight grouting solution that is designed and built in the USA to last. The HG-9 cast assembly ensures a durable design free from excessive welding, and the polyurethane hopper is easy to clean. This lightweight, portable, hand-operated grout pump can be easily used by one person on site. The in-line pressure gauge allows the operator to monitor the efficiency and safety of the slurry used within the application.

Airplaco HG-9 Key Features:

• Lightweight
• Polyurethane Hopper
• Durable Design
• Pressure Gauge
• Self-priming

Airplaco HG-9 Technical Data:

Max Output	7 Litres Per Minute
Line Pressure	0 to 100 psi / 7 bar
Material Hopper Capacity	19 Litres
Outlet Size	25mm
Pumping Distance Vertical	Up to 6 m
Pumping Distance Horizontal	Up to 15 m
Power Source	Manual
Dimensions (LxWxH)	610 mm x 407 mm x 661 mm
Weight	24 kg

Please note: Performance will vary depending on the operator, cycle rate, mix design, and placement line. The HG-9 is also available for purchase. Click on this link for further information.
