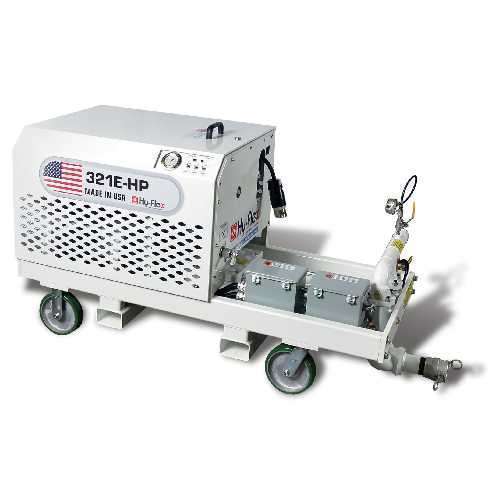

HyFlex 321E High Production Fireproofing Pump

“Smallest” High production fireproofing pump in the world! HyFlex 321E High Production Fireproofing Pump ideal for contractors who require high volume output. HyFlex pumps are built to keep your crews up and running on every job site to protect your return on investment.  Can pump greater than 50 floors with up to 1,000 ft. of hose. The cost to operate every 15,000 bags and pump safety associated with the 321E models are unmatched. The most durable and money-making pump you can own. Time tested to consistently run without issue at job sites. Inquire and start saving today. HyFlex 321E HP Technical Data

	321E HP (HIGH PRESSURE)
POWER	15 hp electric motor
SPEED CONTROL	Dial-a-Speed hydraulic speed control
PUMP SIZE	3 in x 20 in dual hydraulic piston
PUMP HOPPER CAPACITY	Standard 3.6 cu ft, floor hopper 13.5 cu ft
PUMP CHARGE HEIGHT	Standard 3.6 cu ft 40," floor hopper 20"
PUMP OUTPUT	Variable 0-15 gpm or 40 bags per hour
PRESSURE OUTPUT	1,500 psi recommended max working/adjustable pressure control
MAX AGGREGATE SIZE*	4 mm
MAX PUMPING DISTANCE*	275 m
COOLING	Water-jacketed heat exchanger
REMOTE CONTROL	2 wire On/Off
WIDTH	712 mm
HEIGHT	865 mm
LENGTH	1580 mm
WEIGHT	580 kg bare machine, 40 kg 3.6 cu ft hopper, 80 kg 13.5 cu ft floor hopper
POWER REQUIREMENT	400v
WHEELS	2 - 8" rigid x 2 - 8" swivel caster urethane over steel
HYDRAULIC DRIVE	Pressure compensated hydraulic drive
PUMP OUTLET	2" NPT pipe
AIR OUTPUT	12 cfm @ 40 psi (90 psi max) onboard compressor
OPTIONS*	High voltage input
	2" heavy duty or victaulic pump outlet
	Floor hopper or vertical

Benefits:

• Smallest high production fireproofing footprint on planet earth – Portable, fits in short bed pickup.
• 15 or 7.5hp Leeson electric motor – Silent and requires zero maintenance.
• 30 (up to 60) bags per hour, 250 bags per shift depending on vertical/material & applicator.
• Pressure safety control – If back pressure exceeds pumps set point, it stops – Versus blowing hose/gasket.
• Hose length from 10 to 1,000′, no manifold back pressure required – Save not using 3″ surge hoses.
• 2″ outlet uses 2″ NPT/Camlock hose, optional 3″ outlet for existing standpipe.
• Daily operator maintenance is filling Lube oil box with any type oil for piston cup lubrication. Less than 1qt of oil.
• A Hydraulic Piston design has far less repairs than a mechanical piston pump. Repair savings.
• 321E Does not use these fail items – Expense to repair Bearings, Bushings, Pulleys, Gear box, Transmission or Clutches.
• Spray volume easily changes without stopping pump, turn dial up or down. – Higher productivity.
• Toggle switch controls are easy to use and field repair – Unlike expensive membrane/touchpad.

Applications:

• Low/Medium/High-Density Fireproofing
