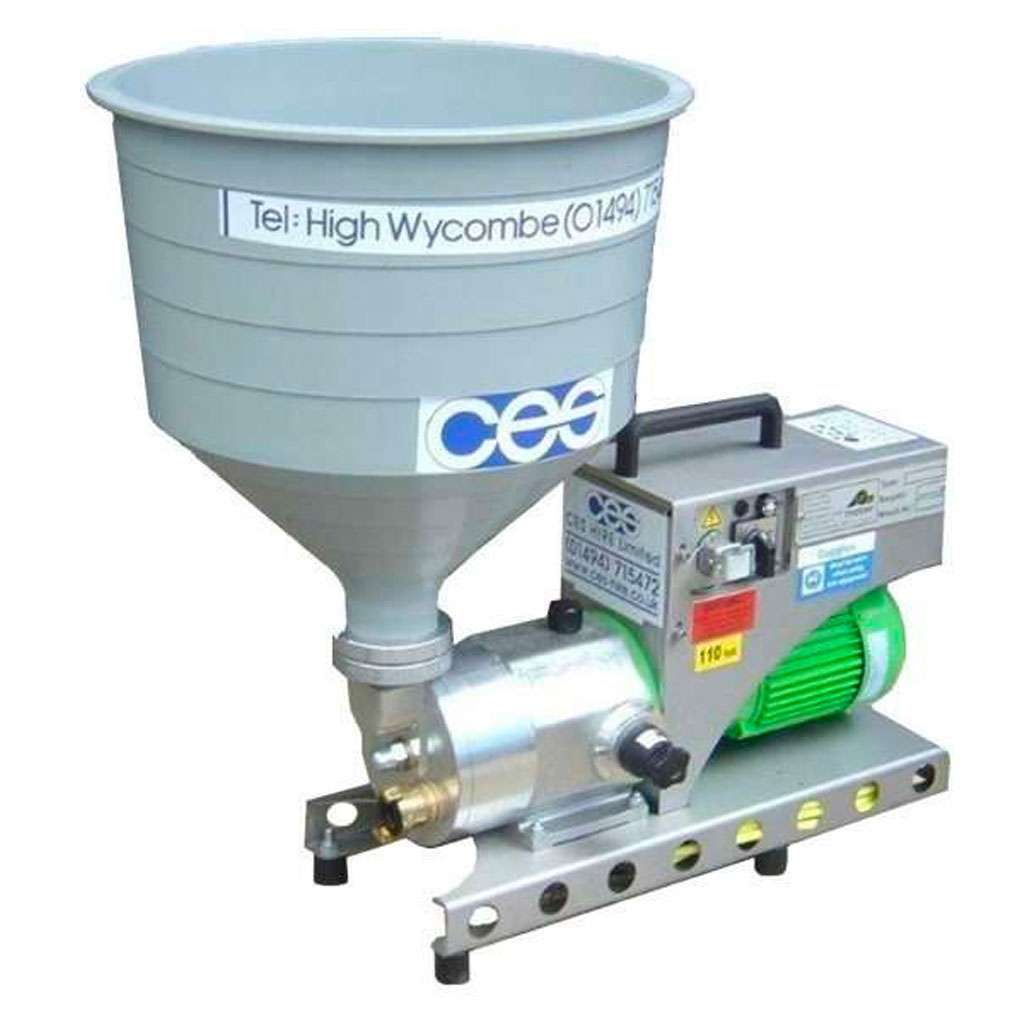

InoBEAM M8 Peristaltic Pump (HIRE)

The CES InoBEAM M8 Peristaltic pump is designed and made in Germany and built to last. Its peristaltic operation makes the InoBEAM M8 ideal for pumping. When adding the LaPadana Compressor, you can also spray Acoustic Renders and Plasters. However, it can also spray External Wall Insulation Renders and pump Grouts. This material-friendly method of delivery allows for the application of specialist ultra-fine plasters, including StoSilent acoustic spray plasters. The delivery method is less demanding on the pump itself. It minimises wear and tear costs by up to 40% when compared to conventional pump technologies. The Inomat M8 is ideal for low-viscosity materials like paint as well as high-viscosity materials, such as renders. This machine is lightweight, compact, and portable, making it easy to transport and move on-site. Firstly, the hopper can be removed, which allows the machine to fit into the back of most small cars. Secondly, when on-site, the machine can be picked up by one person using the handle fitted to the machine. The smooth, new feeding technique keeps the pressure in the hose to a minimum. This means there is no pressing or squeezing of the material being conveyed. This “gentle” application method is what gives the Inomat M8 its truly unique advantage. This machine ensures a superior quality of finish and far superior flexibility of use. Peristaltic technology is the way for the future. Furthermore, the Inomat M8 is the result of extensive research and development work. In conclusion, it is a pump that sets the standard in a wide range of areas.

M8 Technical data

• Max. operating pressure: 15 bar
• Operating voltage: 110 V / 16 A / 60 Hz
• Motor rating: 0.55 kW
• Delivery rate: 0 - 8 l/min
• Delivery range: Up to 30 m*
• Delivery height: Up to 20 m*
• Material hopper: 30 L
• Dimensions 600 x 230 x 750mm (L x W x H)
• Weight approx.: 28 kg * Depending on the material consistency

M8 Features and benefits

• 110V - ideal for site use
• Compact, lightweight and portable, can be used easily by one person
• Lightweight hose
• Variable speed and remote control on/off switch
• Continuously variable pressure regulator
• Can be combined with bulk containers (vats)
• Easy to clean and maintain
• Few wearing parts
• For use with pasty and liquid products
• Pressure and quantity can be adjusted manually
• Pumps pasty material up to 30m and paint up to 100m horizontally

Spec Sheet for Inomat M8

Materials the InoBEAM M8 can Pump and Spray:

• Acoustic Renders and Plasters
• Grouts
• Paints
• EWI Render
• Base Coat
• Thin Coat Renders

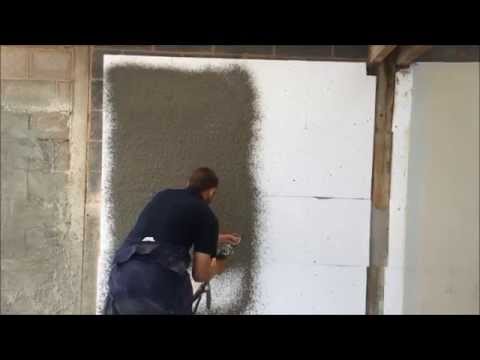

The InoBEAM M8 is an ideal machine for spraying EWI Render Systems. It sprays both base coat and top coat from a range of suppliers, including Sto, Krend, Weber and Parex. In the videos, the M8 is spraying the Sto EWI Render System. Please view the video and call us if you have any further questions...
