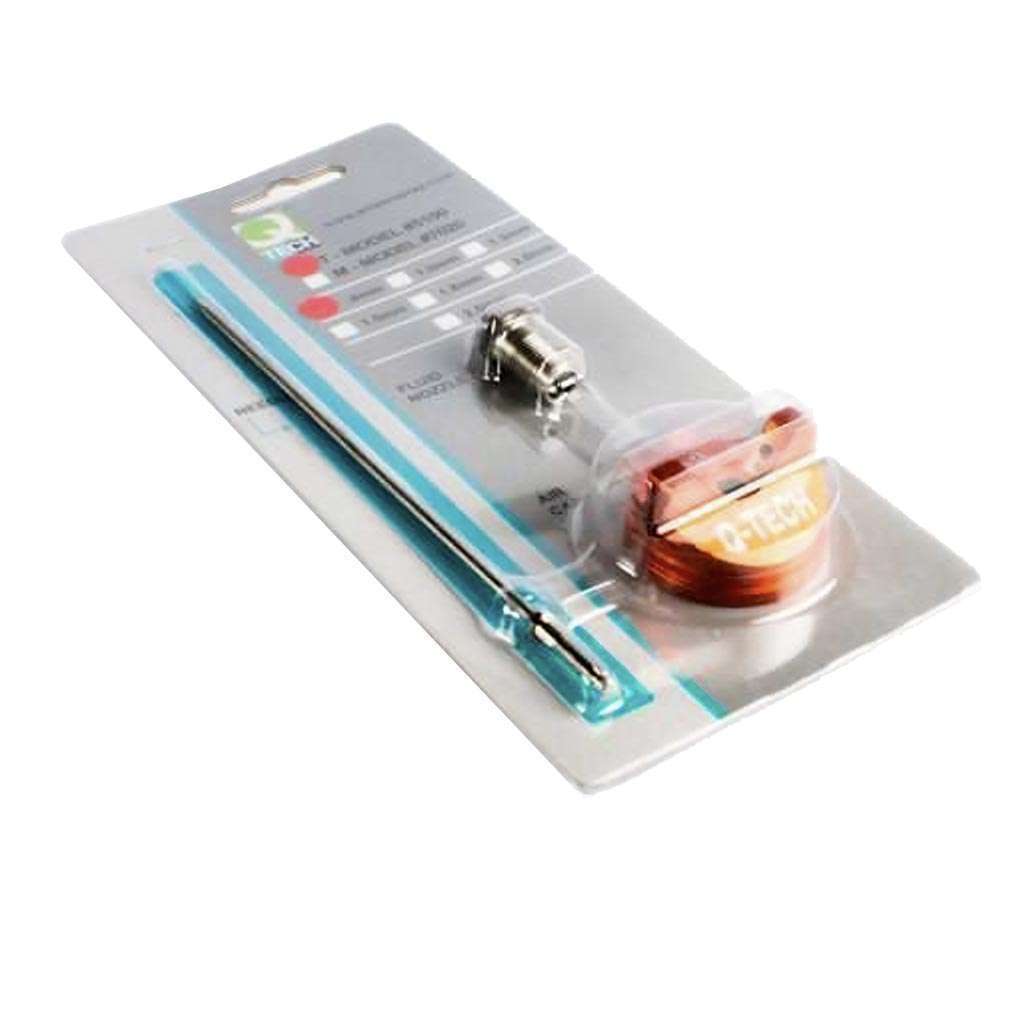

Needle Nozzle and Air Cap Kit for QTech HVLP Paint Sprayer

These Needle Nozzle and Air Cap Kit for QTech HVLP Paint Sprayer are ideal for use with the Qtech 3 and Qtech 5 HVLP Sprayers. Six additional size setups are available as accessories. Size # 4 (1.5mm) is standard with all QTech HVLP guns. 1.0mm, 1.3mm or 1.5mm can be used for any type of fine-finishing application. The larger sizes such as 1.8mm allow for more fluid output - desirable with fast drying lacquers. All our Needle Nozzle and Air Cap Kit for QTech HVLP Paint Sprayer are designed to fit QTech HVLP Paint Sprayers.

Air Cap Set Selection and Size Guide

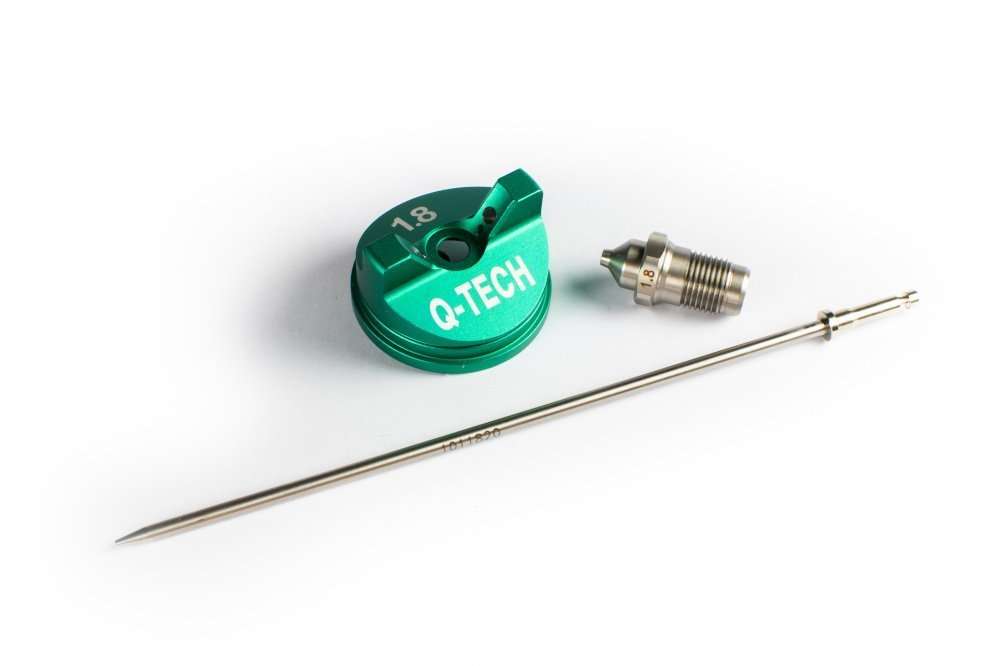

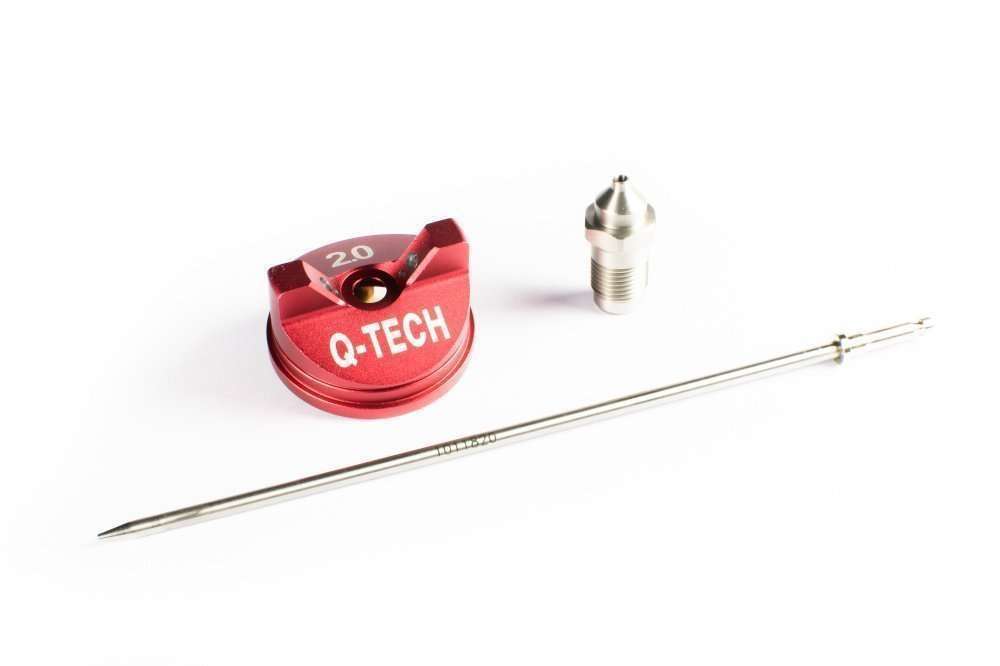

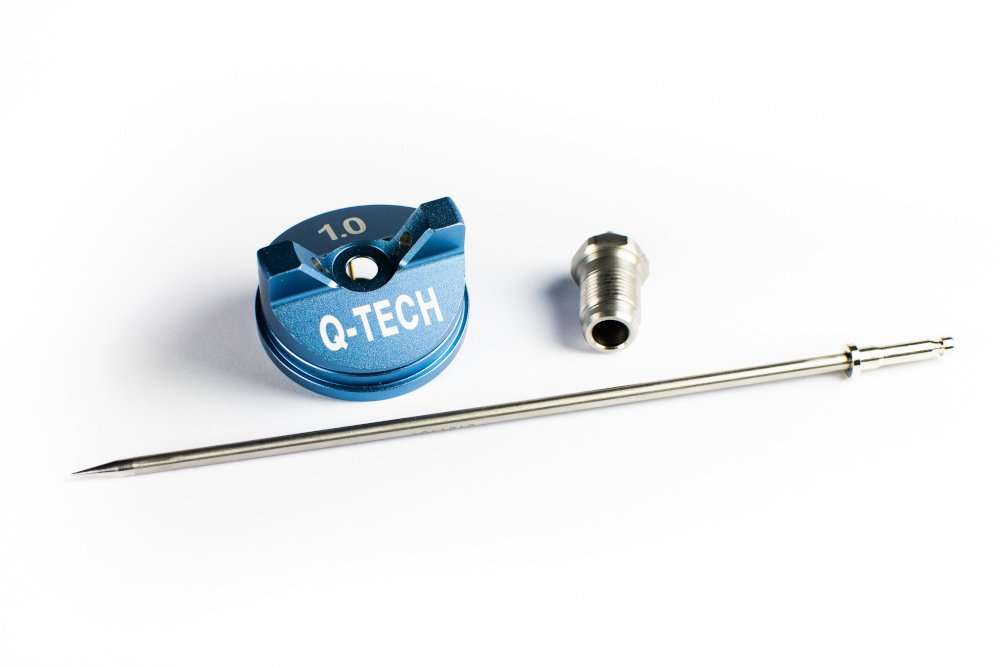

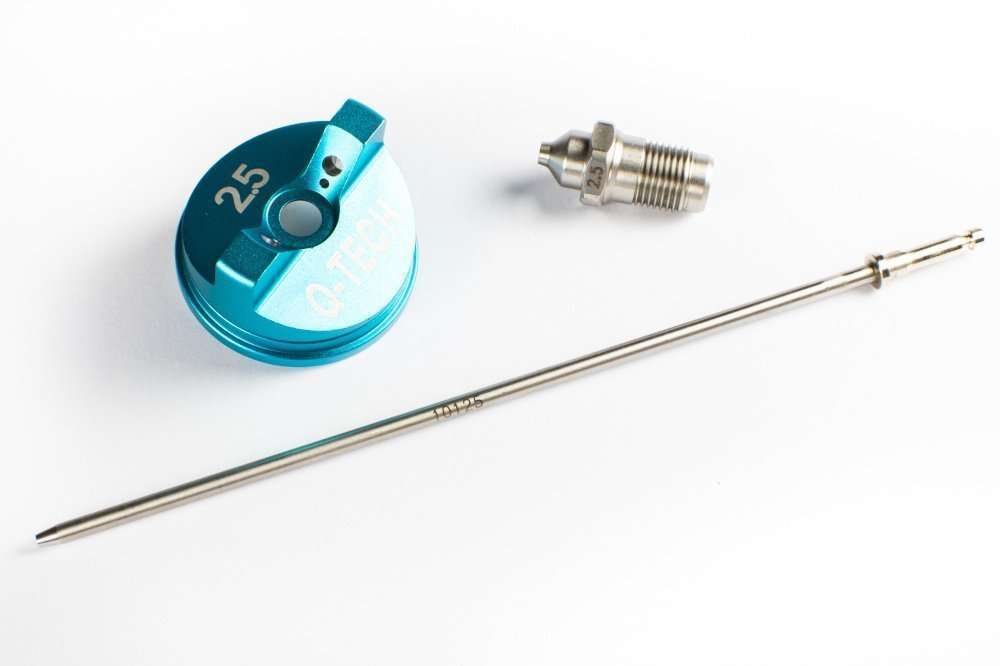

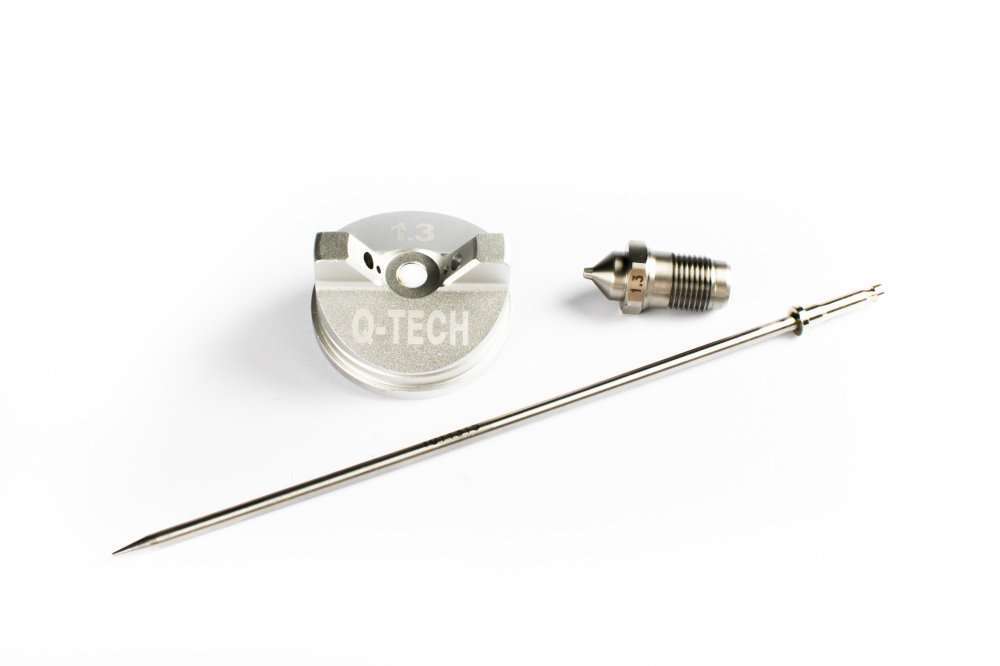

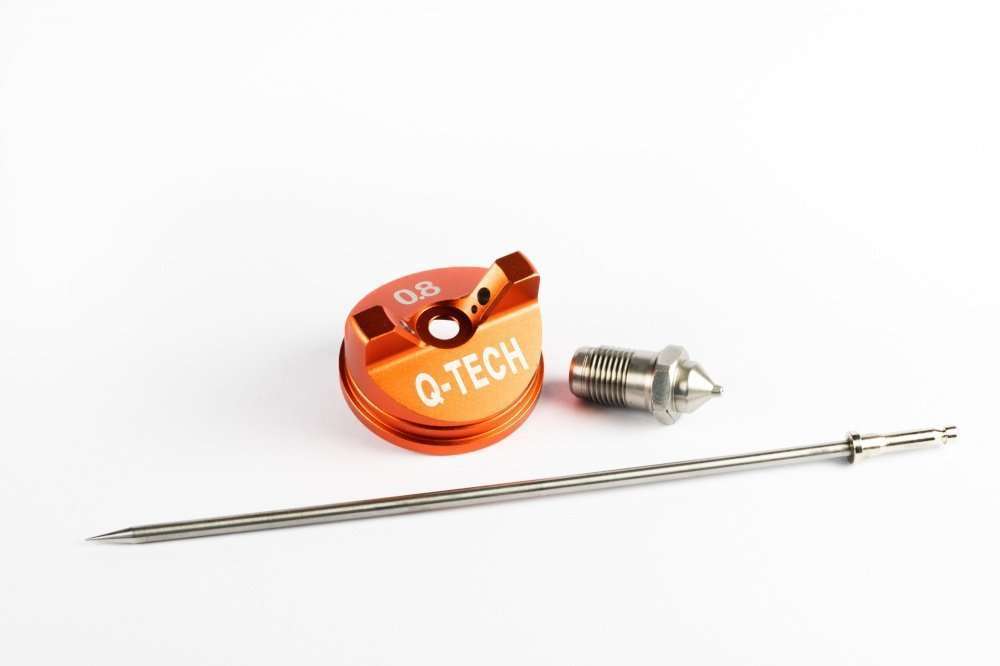

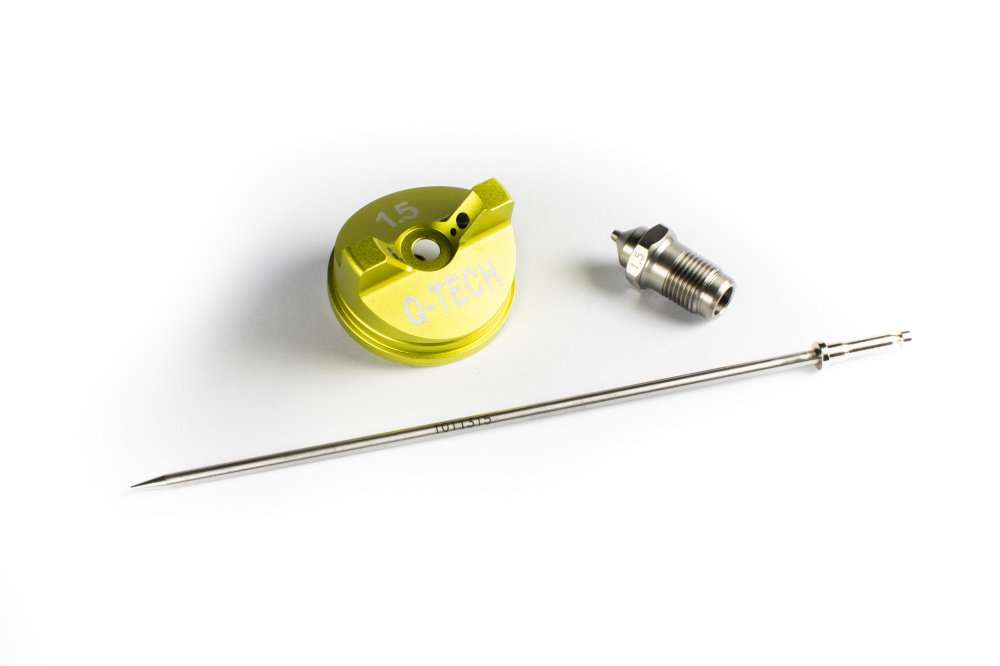

# 1 Product code 10-2023 0.8mm (.031"). SUPER-FINE OUTPUT SHADING, STAINS. # 2 Product code 10-2024 1.0mm (.039") FINE OUTPUT SHADING, STAINS, WATERBORNE COATINGS. # 3 Product code 10-2025 1.3mm (.051") FINE - MEDIUM OUTPUT -STANDARD WATER-BASED LACQUERS, ACRYLICS, POLYURETHANE, STAINS. # 4 Product code 10-2026 1.5mm (.059") MEDIUM OUTPUT Similar to No. 3 but more coverage. Best for AUTOMOTIVE ENAMELS, LACQUER and LATEX for cabinetry and furniture. Also VARNISHES, PRIMERS, OIL-BASED PAINTS. # 5 Product code 10-2027 1.8mm (.070") HIGH OUTPUT Larger surfaces, thick layers, spotted effects. SEALERS, VARNISH, POLYURETHANE, OIL BASED PAINTS, ENAMELS, EPOXIES, LATEX on walls, ceilings etc. # 6 Product code 10-2028 2.0mm (.078") EXTRA HIGH OUTPUT Very heavy flows, fast coverage. STONE FINISH PAINTS, TEXTURE COATING, INDUSTRIALPRIMERS, MULTI-FLECK PAINTS, LATEX on walls, ceilings etc. # 7 Product code 10-2029 2.5mm (.098") MAXIMUM HIGH OUTPUT Heavy flows, faster coverage. LATEX HOUSE PAINT on walls etc.   Looking for an HVLP Sprayer? Take a look at our QTech 5 HVLP Sprayer
