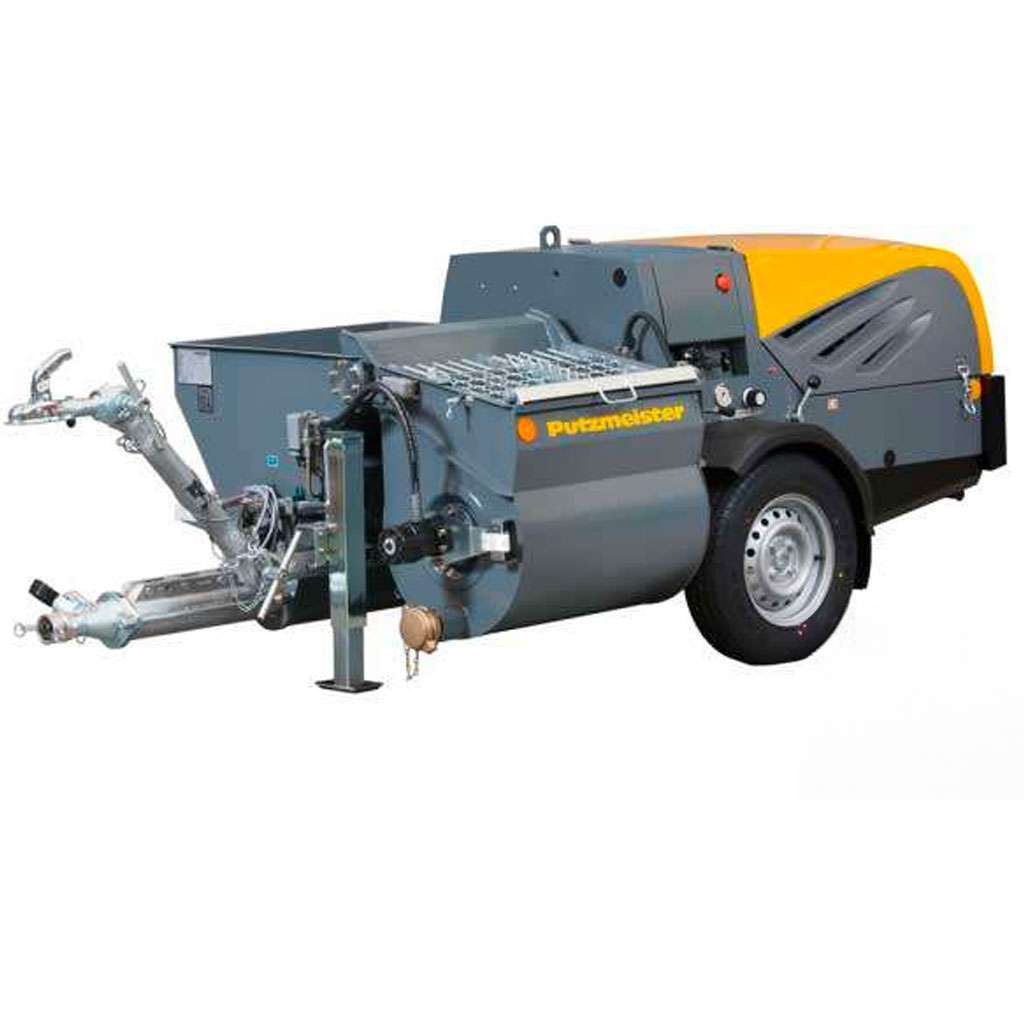

Putzmeister SP11 TMR (HIRE)

The Putzmeister SP11 TMR is a compact, lightweight, road towable worm pump specially designed to achieve outstanding performance, simple operation and easy servicing. The power of the 4 Cylinder Kubota engine in the Putzmeister SP11 TMR is ideal for mixing, pumping and even spray site mixes or pre-mixed interior and external plasters supplied in bags, Sand and Cement Mixes, fire-proofing mortar, base coat plaster, light weight masonry mortar, ornamental plaster, self-levelling floor screed from a ready mix truck and grouting work. The delivery rate of up to 40 l/min with a 2L6 Rotor and Stator or 63 l/min with 2L74 Rotor and Stator. The Putzmeister SP11 TMR has a Braked chassis approved for road use.

Technical Data

• Rotor/Stator type 2L6, optional: 2L74
• Delivery pressure 20 bar, optional: 35 bar
• Theoretical delivery rate - 40 l/min, optional: 200 l/min
• Delivery distance - 120 m distances, 60 m high
• Compressor - 2-cylinder compressor, 400 l/min, 7 bar
• Mixer capacity - 180 l
• Hopper capacity - 220 l
• Engine - 4-cylinder Kubota, 22.7 kW at 2,600 rpm
• Chassis with brake, approved for road use
• Weight - 900 kg
• Dimensions
  • Length - 3924mm
  • Width - 1420mm
  • Height - 1160 mm
• Filling - height 880 mm
• Maximum particle - size 6 mm (2L6), 8 mm (2L74)

Is the SP11 TMR for you? Considering purchasing this machine? Take a look at the P11s we have available to purchase.
