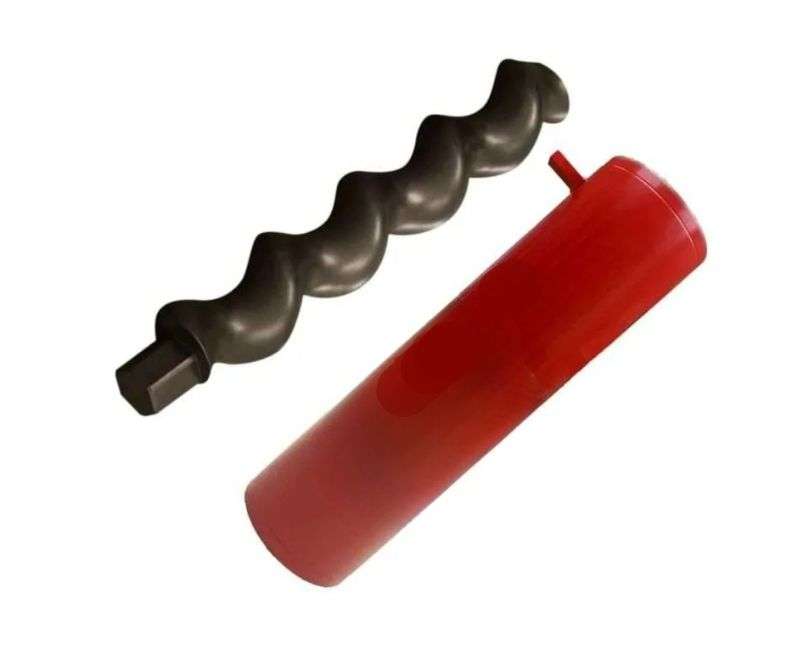

Putzmeister Type Red 7515 premium rotor and stator set

The Putzmeister Type Red 7515 premium rotor and stator set are specifically designed to fit Brinkmann FHS 200, Putzmeister SP20 THF, Putzmeister SP25 DHF, Lancy TF400, and other highly sought-after flow screed pumps. Equipped with a high-performing hexagonal drive head, it boasts an impressive output capacity of up to 200 litres per minute when used with most flow screeds from a ready-mix truck. It is important to note that this rotor and stator set is not suitable for pumping concretes or aggregate sizes larger than 8mm. With an outstanding vertical pumping distance of 200m, this set guarantees reliable and efficient performance. We recommend washing up liquid and a wooden block to securely attach the stator base for a smooth assembly process. If you require any additional information regarding the assembly of this set, please do not hesitate to contact us.

Putzmeister Type Red 7515 premium rotor and stator set Technical data:

• Stator Diameter: 159 mm
• Stator length: 550 mm
• Rubber quality: 65 Shore
• Flow Rate (@ 400 I 200 RPM): 400 l/min | 200 l/min
• Max. grain size: 8 mm
• Rotor Material: High alloyed tool steel

Please note these may be supplied without Putzmeister branded wrap. Take a look at our video to see how to put together a rotor and stator for your diesel machine.
